Description

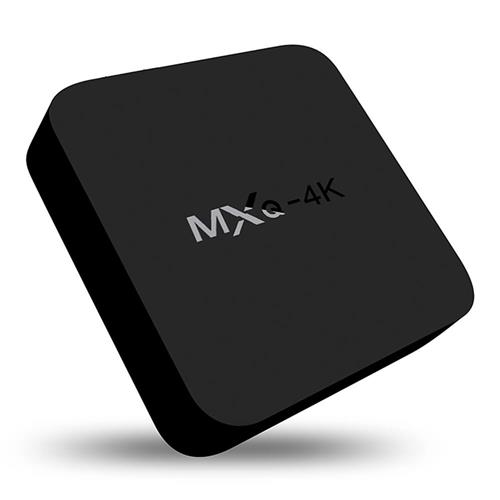

Highlights Rockchip RK3229 Powered by Rockchip RK3229, a quad-core ARM Cortex-A7 processor that supports 10/100Mbps Ethernet, HDMI 1.4, and 10-bit H.265 2160p video playback. DDR3 2GB, eMMC 8GB It sports a 1GB of DDR3 RAM, and 8GB eMMC storage to deliver richer end-user experience. 4K Resolution MXQ-4K supports 4K 10-bit H.265 video Playback also has Kodi preinstalled. Rockchip RK3229 is an affordable processor compared to Amlogic S805 because it also has a 1.5Ghz Quad Core, but Cortex–A7 processor. And most importantly, unlike the latter, RK3229 supports 4K UHD @ 60fps HW decoding. 802.11 b/g/n With support for 802.11 b/g/n,the MXQ-4K TV box brags a WiFI signal that is stronge enough to enable one to browse the net quickly or even check their email. Specification General Model: MXQ Type: TV BOX Hardware CPU: RK3229, 28nm Quad core Cortex A7, High cost performance 4K OTT Box solution GPU: ARM Mali-400 GPU HDMI: Including an HDMI 2.0 for HDMI 2.0 for 4K YUV420@60Hz with HDCP 1.4/2.2 Support 4K 10-bit H.265/H.264/VP9 video playback and display Memory: 2GB DDRIII Flash: 8GB Nand Flash Software OS: Android 6.0 3D: Hardward 3D graphics acceleration Communication WiFi: 802.11 b/g/n, RTL8189 LAN: 10/100M Media Video decoding: 4K VP9 Video decoder, 4K 10-bits H.265/H.264 video decoder 1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8) Support conversion from BT.2020 to Rec.709/Rec.601 Video post processor: de-interlace Support H.263/H.264 2160P@ 24fps Support VC-1 ,MPEG – 1 1080p @ 60fps Support MPEG- 2 2160P @ 24fps Support MPEG-4 1080P @ 60fps Support AVS 1080p @ 60fps Support MVC 2160P @ 24fps Support WMV,3GP,MKV,ASF,3G2M4V,MJPEG,RV8,RV9,RV10 1080P@60fps Support HEVC decoder Support Main/Main10 HEVC/H.265 decoder, 4K @ 60FPS Support 4096×2304 resolution Support HDMI 720P-2160P FUII 3D HD( 2160P, 3840 * 2160 ), 4K+2 K Support flash11.1 Video Decoder format: H.264,H.265,VP8,MVC(1080P) Video format: Supports DIVD/DIVX/REAL8 / 9 / 10, RV, RM, RMVB, PMP, FLV, MP4, M4V, VOB, VP6, VP8 2160P @ 24fps Audio format: Supports MP1, MP2, MP3, WMA, OGG, AAC, M4A , FLAC, APE, AMR, RA, WAV, etc Picture format: Supports JPG, JPEG, BMP, GIF, PNG, JFIF etc Resolution 8192×8192 HDD file system: FAT16 / FAT32 / NTFS Support Subtitle: SRT, SMI, SUB, SSA, IDX+USB DRM: Support Widewine Level1, DRM PlayReady,Verimatrix,built in Trustzone, HDCP 2.2/1.4 Appliactions Online: Browse all video websites, support Netflix, Hulu, Flixster, youtube etc Apps: Apps download freely form android market, amazon appstore etc Medium: Local Media playback, support HDD, U disck ,SD card Talk online: Support SKYPE video call, MSN, facebook, twitter, QQ etc Others: Support WiFi hotpiont, could be as a wireless router Support DLNA, Google TV Remote, LAN, 3D Moive, Email, office suit etc Interface 1*HDMI 1.4b with CEC Built-in HDMI 1.4b transmitter including both controller and PHY with CEC and HDCP, 4K @ 60FPS max resolution output 1*Mirco SD Card (TF) TF cards (up to 32GB) 4*USB HOST 2High speed USB 2.0,support USB DISK and USB HDD 1*SPDIF SPDIF output 1*RJ45 Ethernet:10/100M, standard RJ-45 1*Power input 5V/2A Power 5V/2A Package Contents TV Box Power Charger HDMI Cable IR Remote Control
