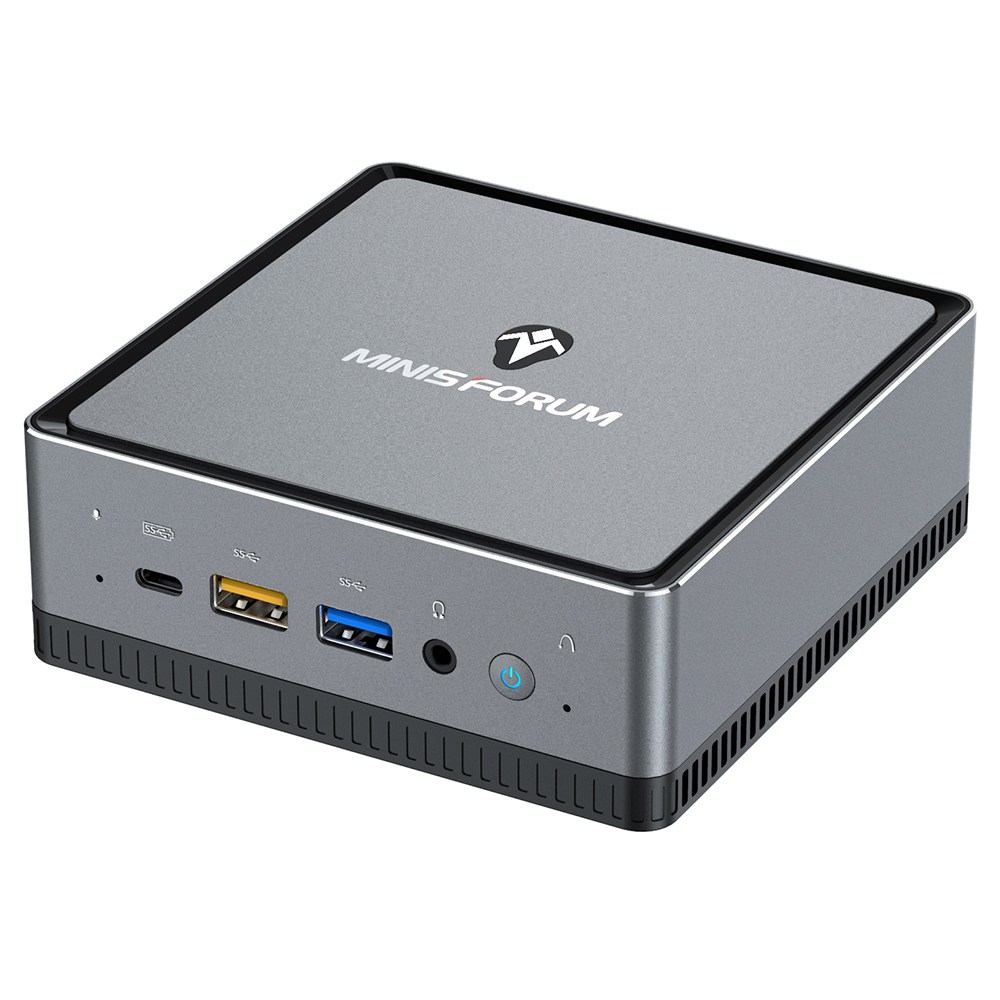

Highlights Running on Windows 10 pro, the MINISFORUM EliteMini UM700 comes with 8GB/16GB of SO-DIMM RAM and 128/256/512 GB of M.2 2280 storage variants. It takes the initiative to embark the AMD Ryzen 7 3750H well hidden under a fan and a classic laptop heatsink. The latter is a solution developing 35 watts of TDP and which offers 4 cores and 8 Threads on frequencies ranging from 2.3 to 4 Ghz with 4 MB of L3 cache. It embeds a rather powerful Radeon Vega 10 graphics circuit which should open the door to many 2D, video and 3D uses. There is also an M.2 2230 slot occupied by an Intel AX200 card that will offer Wifi6 and Bluetooth 5.1. The EliteMini UM700 can drive 2 4K UltraHD displays. It offers a front USB Type-C port that supports a DisplayPort video output. But also two rear video outputs with an HDMI 2.0 and a DisplayPort. On the front panel there are 2 additional USB ports with 1 USB 3.1 Gen1 and 1 USB 3.1 Gen2. An audio jack port combining headset and microphone, the start button and two small built-in microphones. On the rear part, 2 other USB 3.1 Gen2 ports are visible as well as 2 Gigabit Ethernet network ports, an anti-theft port and a classic jack type power supply. Specification General Brand: MINISFORUM Model: DeskMini UM700 Type: Mini PC Hardware OS: Windows 10 CPU: AMD Ryzen7 3750H,4 Cores 8 Threads 2.3Ghz,UP TO 4.0Ghz,Cache 6MB Instruction Set: 64bit Lithography: 12nm Graphics: Radeon™ Vega 10 Graphics 1400 MHz RAM: 16GB DDR4 SSD: 1x 512GB M.2 PCIE 4X SSD,1x 2.5inch SATA3 HDD slot Communication WIFI: WIFI6, 2.4G/5G, 802.11AX, 802.11 b/g/n/ac , MIMO Bluetooth: Bluetooth 5.1 LAN: 1000M Media Decoder Format: H.264,H.265 Video format: 4K,4K x 2K,ASF,AVC,AVI,DAT,FLV,ISO,MP4,RM,RMVB,RV,TS,VOB,VP9,WMV Audio format: AAC,AC3,ACC,APE,DDP,DTS,MKA,MP3,MPEG,OGA,OGG,RM,TrueHD,WAV,WMA Photo Format: BMP,GIF,JPEG,JPG,PNG Support 5.1 Surround Sound Output: Yes Other Features Language: Multi-language HDMI Function: HDCP Interface USB3.1 Port×1(Gen1 , Yellow) USB3.1 Port×3(Gen2 , Blue) USB-C Port×1(Gen2) HDMI 2.0×1 DisplayPort×1 RJ45 Port×2 Audio Jack x 1 Digital MIC×1 Clear CMOS Power Power Consumption: 19V/3.42A Power Type: External Power Adapter Power Supply: Charge Adapter Certification: CE,FCC Dimension&Weight Product weight: 0.50 kg Package weight: 1.40 kg Product size (L x W x H): 12.80 x 12.70 x 4.60 cm Package size (L x W x H): 15.80 x 15.80 x 10.00 cm Package Contents 1x MINI PC 1x Mounting bracket 1x Hdmi cable 1x Power adapter 1x Usb cable 1x User manual
